The following stuff were used to decode the APT signals from various NOAA satellites,

  • RTL-SDR
  • QFH Antenna tuned to 137 Mhz
  • 1 Mhz - 3 Ghz Wideband LNA
  • RPi for handling the exquisiteness of RTL-SDR
  • And a dumb PC for decoding the APT signals

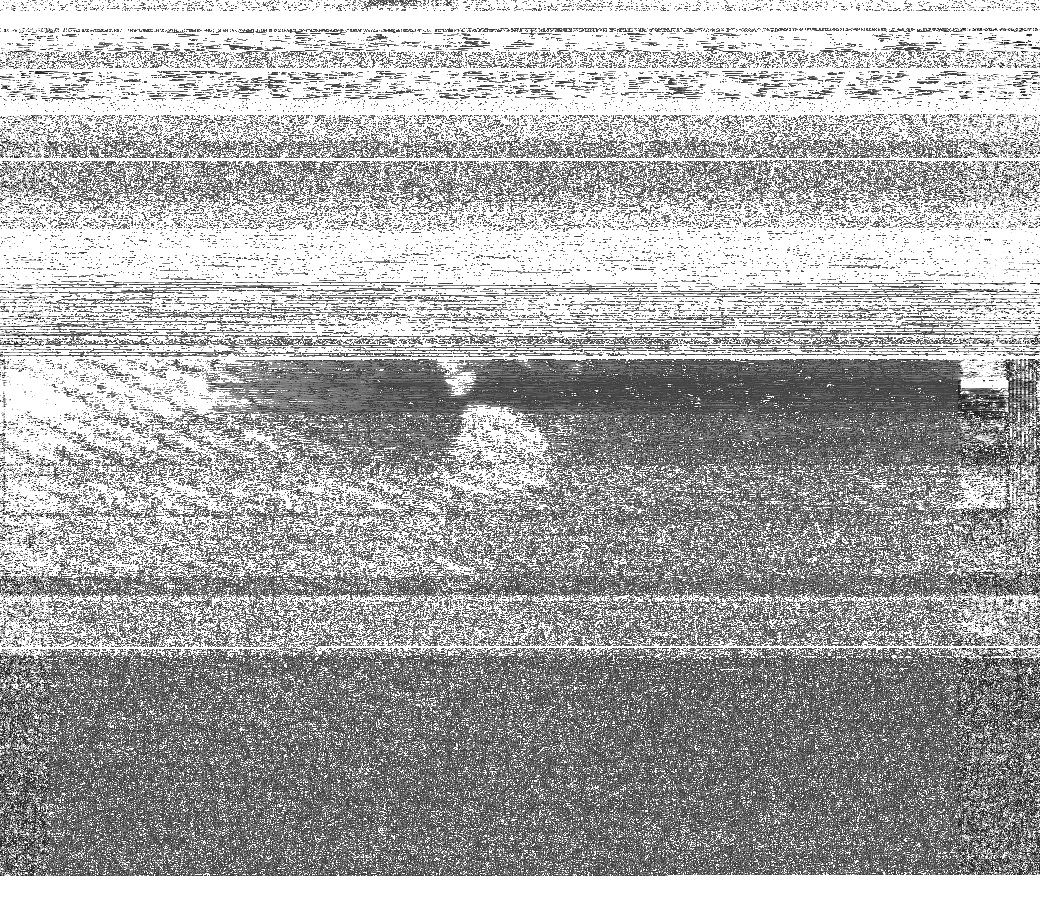

Attempt 1: NOAA-19 at 24/05/2018 1941

Even I'm not sure of what this image is supposed to mean :P
01_19_24-5-18-1941

Attempt 2: NOAA-19 at 25/05/2018 0400

The APT signal was too noisy despite using LNA, but the decoder managed to get a pretty good image.
02_19_25-5-18-0400

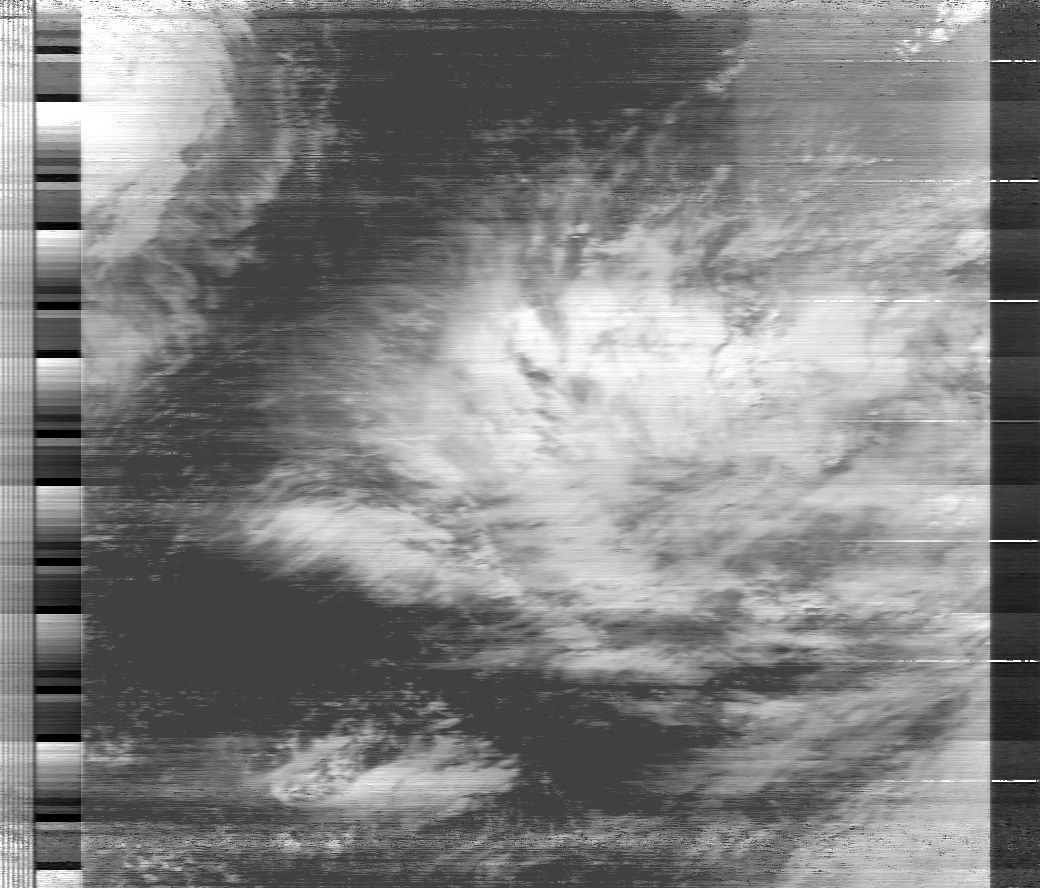

Attempt 3: NOAA-19 at 25/05/2018 1640

Third time's the charm and finally an image that I'm proud of xD
03_19_25-5-18-1640

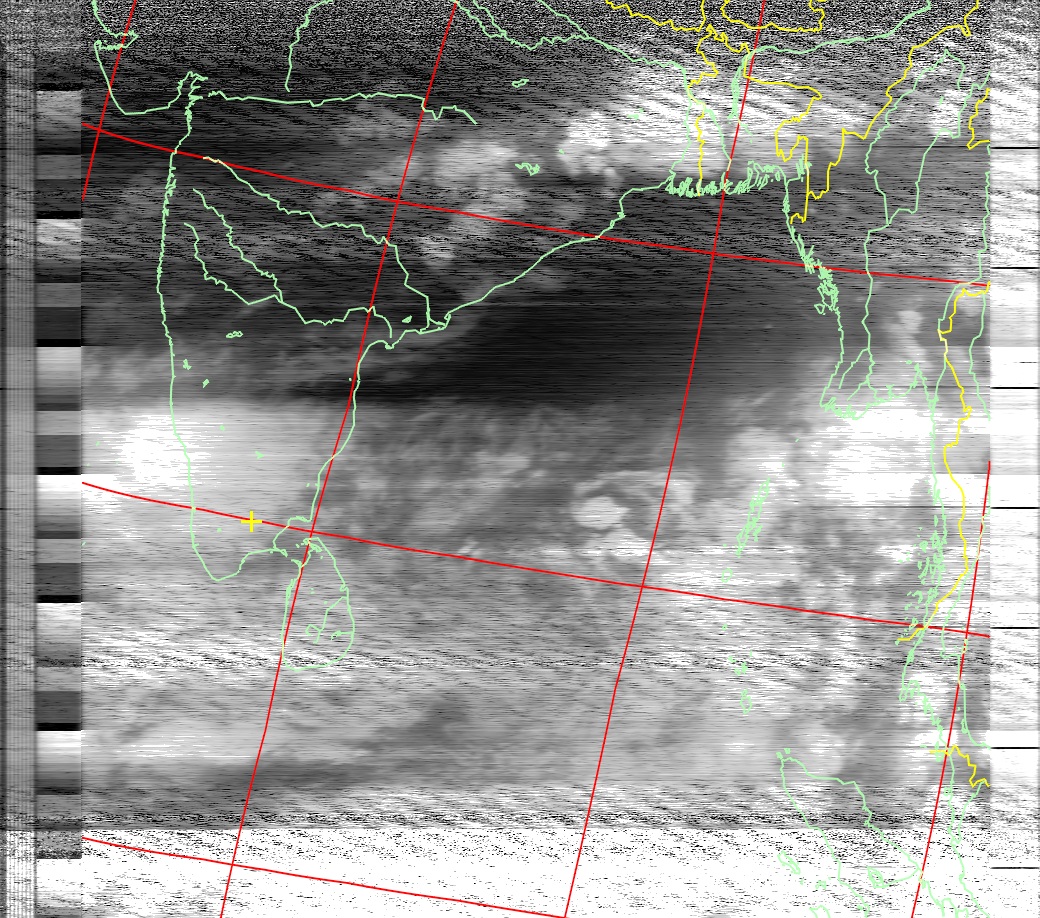

Attempt 4: NOAA-18 at 25/05/2018 1720

A little noisy, but WXtoIMG managed to figure out the pass and build an overlay
04_18_25-5-18-1920

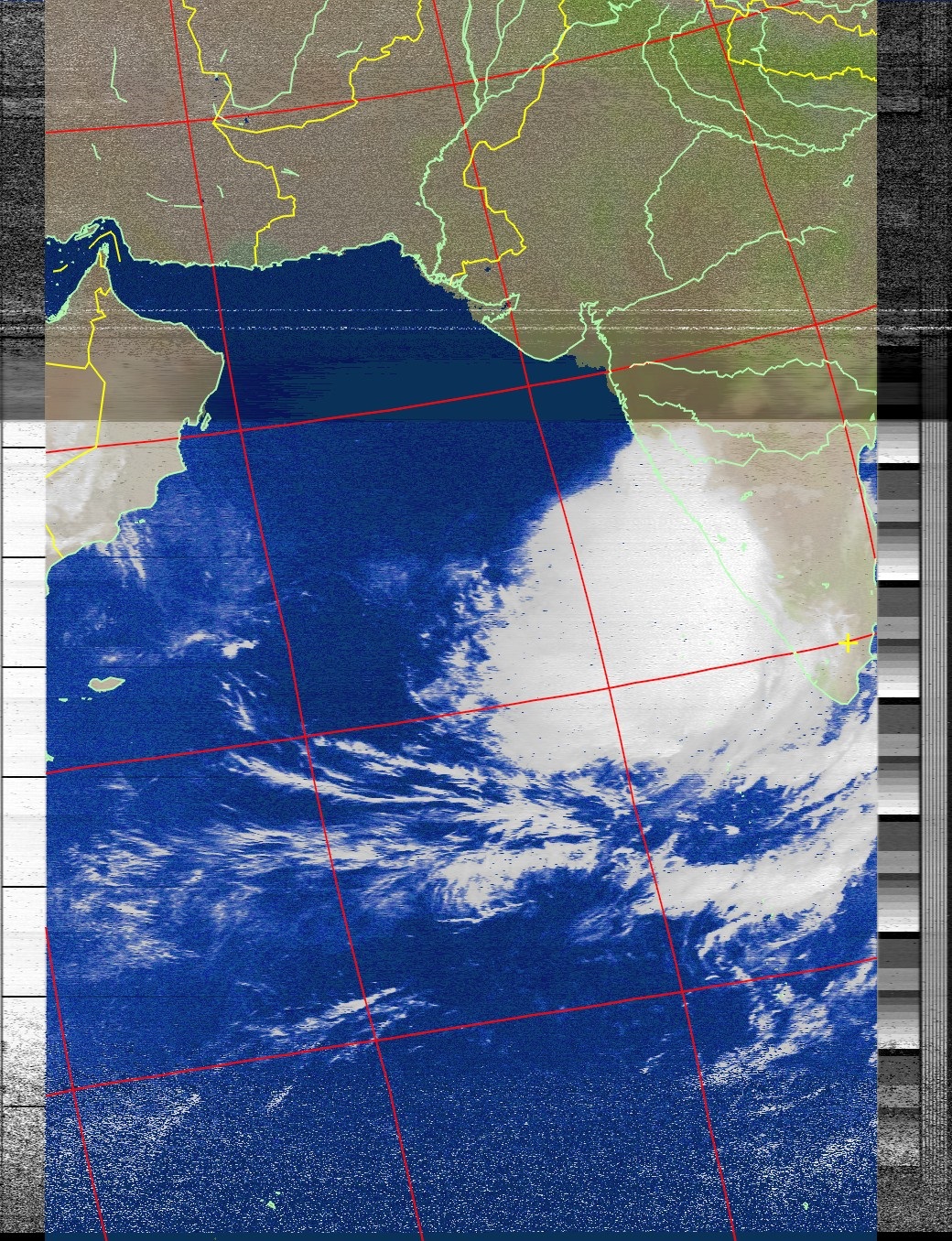

Attempt 5: NOAA-19 at 27/05/2018 0512

Captured the APT signals of satellite pass completely with noise at both start and end, which decodes to this beautiful piece of image
05_19_27-5-18-1510
